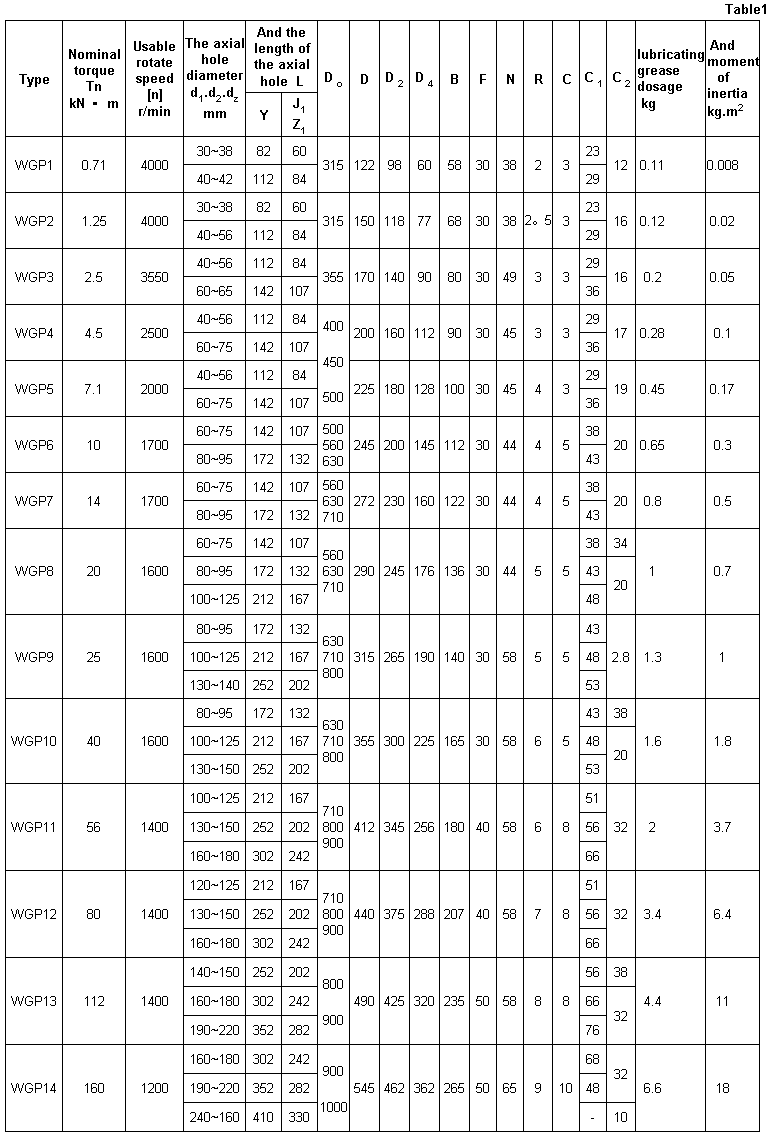

WGP Type Barreled Tooth Flank Coupling With Barking Disk Data and Size(Table1)
Remark:
1. The weight and the rotate inertia is uncounted in the disk, the data is in the form 2.
2. The C. C1. C2 numerical value in the form, should add k/2 according to different barking disk.
3. N=S-K/2, the numerical value in the form is the calculated value when the D0 is the largest; the value of S and K is in the form 2.
